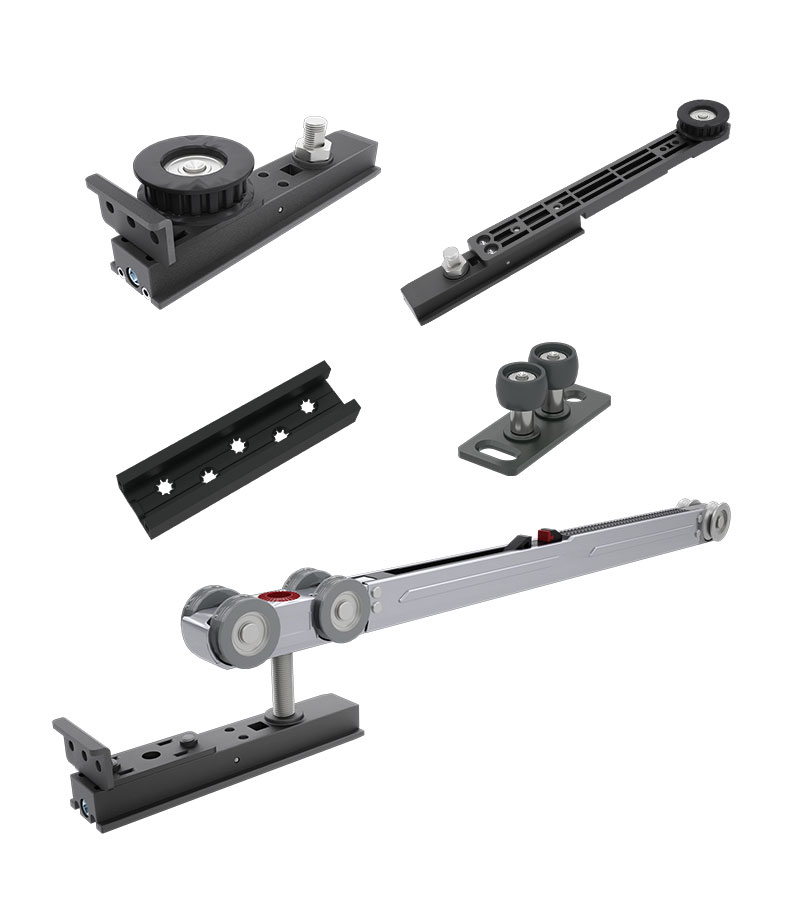

The synthetic linkage wooden sliding door fittings are suitable for both two-door and three-door linkage systems. They feature a side-adjustable hanging plate design, allowing height adjustments without removing the door panel. The hardware is designed for wooden doors weighing up to 80 kg each and is resistant to deformation. The hanging sliding roller includes an opposite damper design for smooth and controlled movement.
| Item Code | Model No | Description | Weight | Width | Thickness | Length |
|---|---|---|---|---|---|---|
| TF212062143 | TFRS30SL | 2 Door | 80 KG | 820-1200 MM | 35-50 MM | – |
| TF212062144 | TFRS30SLT | 3 Door | 80 KG | 820-1200 MM | 35-50 MM | – |
| TF212062147 | TFRSL01W | Fittings | – | – | – | – |
| TF212062123 | TFURC40 | Upper Rail Cover for 2 Door Hanging | – | – | – | 4000 MM |
| TF212062124 | TFBR40 | Bottom Rail | – | – | – | 4000 MM |
