Cuttable In-line Sliding Door System

Cuttable In-line Sliding Door System

  • SKU: TF90021070 | TF90021071
  • Colors: SSS
  • SKU: TF212062141 | TF212062142
  • Model: TFCILS165 | TFCILS245

Description:

  • The sliding rail can be adjusted from 1650 mm to 2450 mm.
  • Two doors close seamlessly for a neat, uniform appearance.
  • Fits wooden, framed, and aluminum frame doors 18–45 mm thick.
  • Each single door supports a load capacity of up to 80 kg.
  • Smooth, silent operation with a built-in cleaning brush.
  • Double soft-closing function provides long-lasting performance.
Send an Enquiry

Technical Specifications:

  • 19343mm diaspring assisted stainless steel SS304 grade tubular lever handle
  • Spring Assisted Chassis
  • 52mm push on rose with 8mm projection
  • Supplied with 52mm escutcheons prepared for Euro-profile cylinders
  • 8mm x 8mm square spindle
Send an Enquiry

Product Overview

About Cuttable In-line Sliding Door System

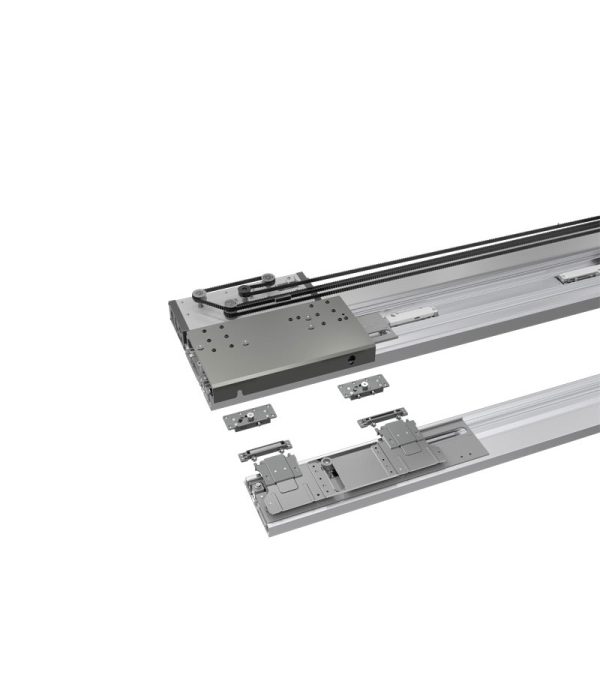

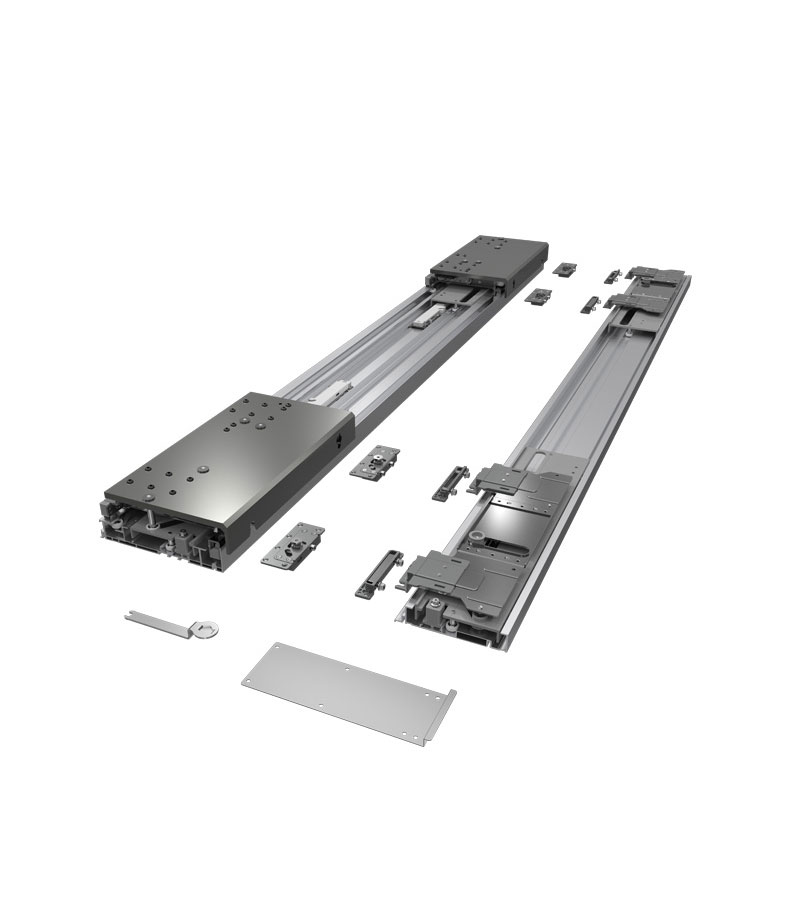

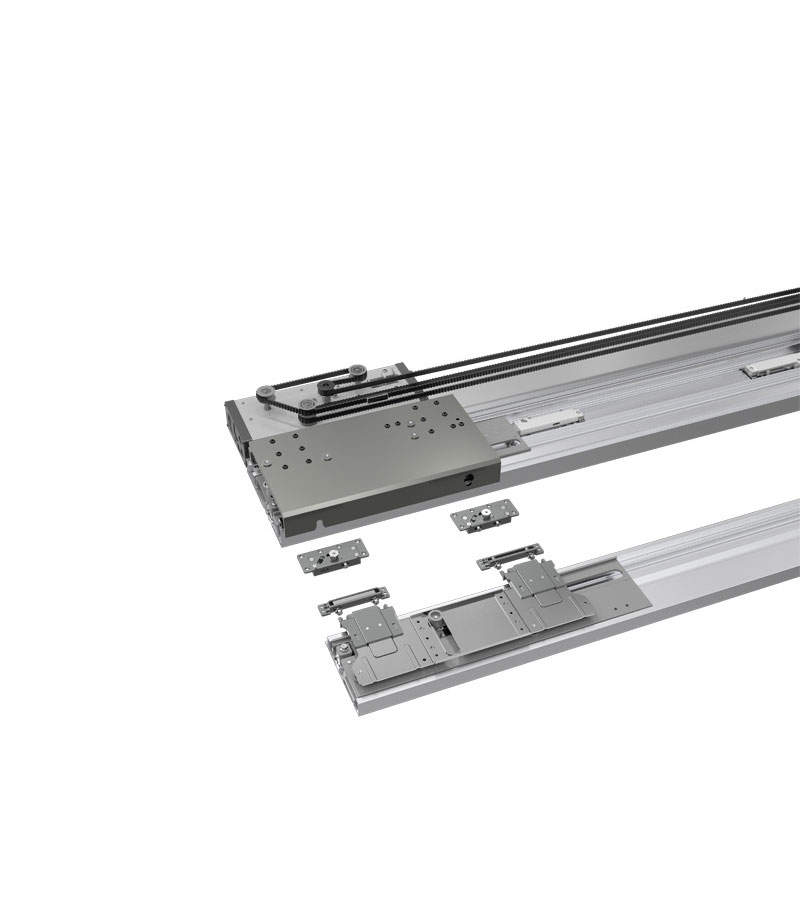

In-line sliding door system delivers smooth, stable, and quiet operation. The cuttable design is supported by high-strength runner bearings, enabling each door panel to hold up to 80 kg. Whether paired with wooden or metal frame doors, the system ensures a perfect and reliable fit.

Item CodeModel NoWeightWidthThicknessRail Range
TF212062141TFCILS16580 KG1650 MM18-45 MM1350-1650 MM
TF212062142TFCILS24580 KG2450 MM18-45 MM2050-2450 MM



Download Technical Specification

Technical Data Sheet
