Hanging Sliding Door System

Hanging Sliding Door System

  • SKU: TF90021070 | TF90021071
  • Colors: SSS
  • SKU: TF212062136 | TF212062137 | TF212062138
  • Model: TFHSSC80D | TFHSDSC80T | TFHSFSC80TF

Description:

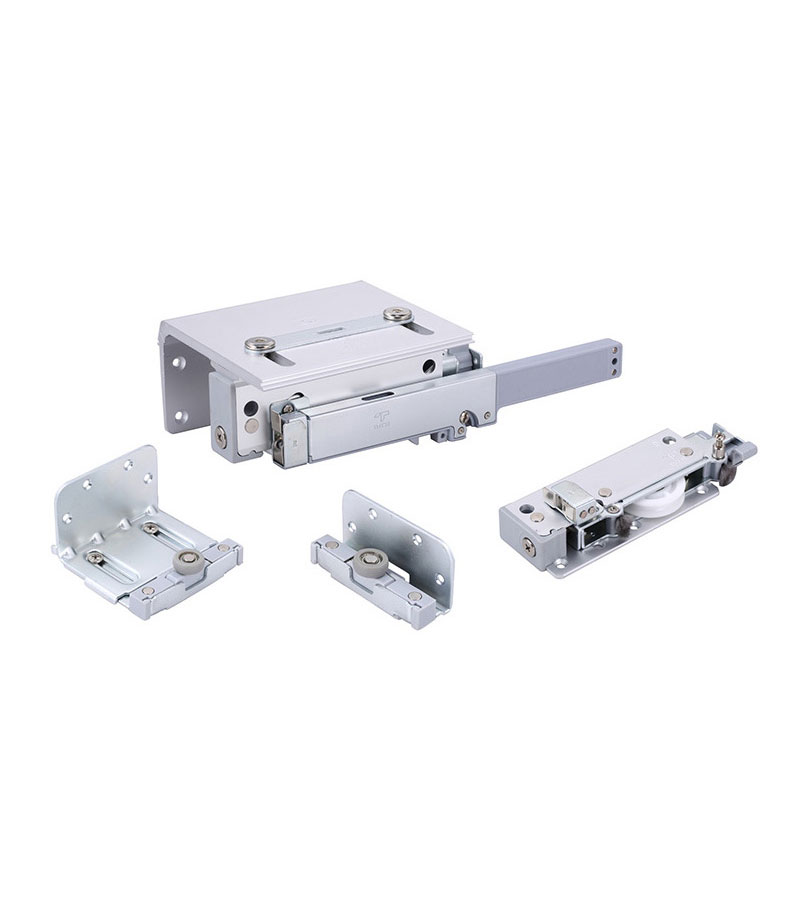

  • Clip-on damper with integrated parts for smoother, quieter operation.
  • Specially designed bottom runner enables fast installation and easy removal.
  • Up-and-down synchronized damping delivers excellent soft-closing performance.
  • Convenient side screw adjustment with a generous adjustment range.
  • Smooth, silent operation with a built-in cleaning brush.
  • Self-cleaning rail brush keeps movement smooth and quiet; suitable for doors 16–46 mm thick, 700–1500 mm wide, up to 2500 mm high, and 20–80 kg in weight.
Send an Enquiry

Technical Specifications:

  • 19343mm diaspring assisted stainless steel SS304 grade tubular lever handle
  • Spring Assisted Chassis
  • 52mm push on rose with 8mm projection
  • Supplied with 52mm escutcheons prepared for Euro-profile cylinders
  • 8mm x 8mm square spindle
Send an Enquiry

Product Overview

About Hanging Sliding Door System

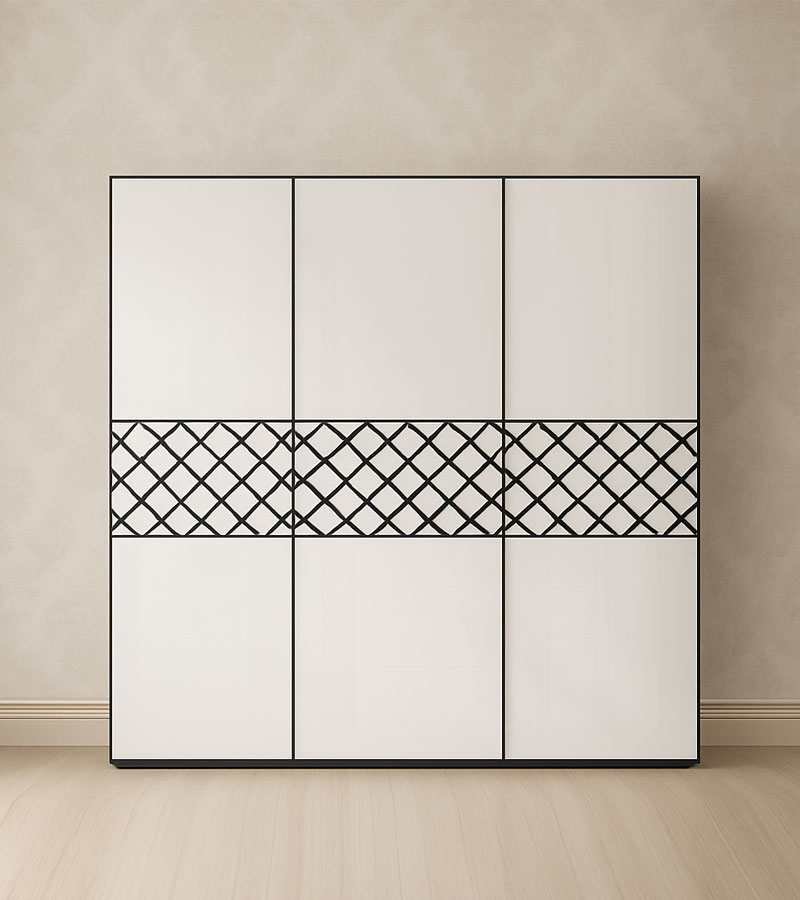

This hanging sliding door hardware suits single doors weighing from 20 to 80 kg. It offers wide adjustment features and is very easy to install. The sliding door system has a specially designed bottom runner, and the top rail with dampers ensures smooth, silent, and soft-closing operation. With these soft-closing fittings installed

Item CodeModel NoDescriptionWeightWidthHeightThicknessMeter
TF212062136TFHSSC80D2 Door20-80 KG700 -1500 MM2500 MM16-46 MM
TF212062137TFHSDSC80T3 Door20-80 KG700 -1500 MM2500 MM16-46 MM
TF212062138TFHSFSC80TF3 Door20-80 KG700 -1500 MM2500 MM16-46 MM
TF212062139TFUDR1646Up & Down Rail–––16-46 MM3 Meter



Download Technical Specification

Technical Data Sheet
